| Τόπος καταγωγής | Κίνα/Ιαπωνία |
| Μάρκα | FUJI |

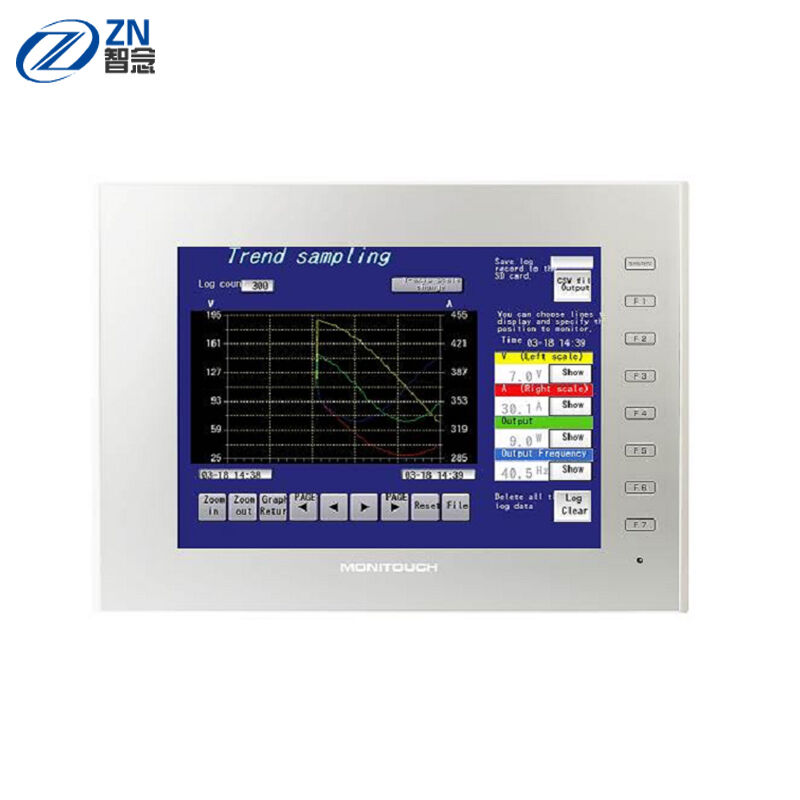

| Αριθμό μοντέλου | V9080ICD |
| V9080iC | ||
|---|---|---|
| Power supply | Rated voltage | DC24V |
| Permissible range of voltage | ±10％ | |
| Permissible momentary power failure | within 1ms | |
| Demand (maximum rating) | 17W or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| Physical environment | Ambient temperature | 0～50℃*1 |
| Ambient humidity | 85%RH or less (without dew condensation)*1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃*1 | |
| Storage temperature | 85%RH or less (without dew condensation)*1 | |
| Overvoltage category | Category II | |
| Pollution degree | Pollution degree 2 | |
| Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) |
|
| Electric operating conditions | Resistance to noise | Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting |
|
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 235.0×180.0×48.9 | |
| Dimensions W*H*D(mm) | 220.5×165.5(+0.5/-0) | |
| Weight (display only) |
Approx. 1.3 kg | |
| Case color | Light gray (black front housing for black model) |
|
| Material | PC resin |
