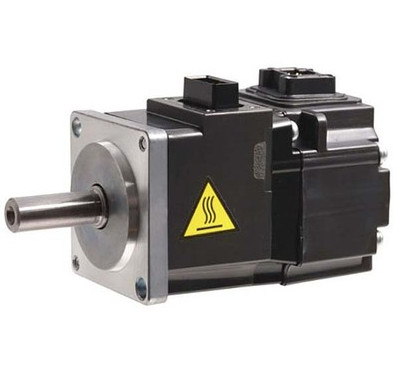

HG-KR43B Servomotor HG Series, Power 400 W
FA-Servo-Motion: Servo Motor
Series | MELSERVO-J4 |
Type | HG-KR |
Power Supply (V) | 200 |
Rated Capacity (kW) | 0,4 |
Inertia | LOW INERTIA |
Rated Torque (Nm) | 1,3 |
Maximum Torque (Nm) | 4,5 |
Rated Speed (rpm) | 3000 |
Inertia (kg*cm2) | 0,393 |
Brake | YES |
Shaft Type | STRAIGHT SHAFT |
Current Type | AC |
Encoder Resolution (p/rev) | 4194304 |
Maximum Speed (rpm) | 6000 |
Protection Class | IP65 |
Encoder Type | 22-BIT |
Product Dimensions & Weight
Depth (mm) | 135,1 |
Weight (kg) | 1,8 |
Width (mm) | 60 |
Height (mm) | 77,1 |
Delivery
